The homogeneity of current routing products is very serious. For the ever-increasing demands of users, the characteristics are related to the success or failure of a routing product. Playing games, especially LOL, Dota and other competitive games are the most troublesome delays. The glory routing PRO game version, based on the glory routing pro, further solved the problem of Catton delay and network instability in the user's game, so what is the difference in the end? Let's take a look at it below.
First, open the box
Glory seems to like the design of a straight draw. This router is no exception, but there have been changes in the design, black and red color, more prominent this is a custom hardware for the game, and product positioning is very consistent.
This product was jointly developed by Glory and Tencent, with the main features and LOGO of popular games on the back.
The draw-out design of the straight tube is relatively cool, slightly dampened, and does not slip off.
After opening, you can see the top of the router, and the pattern color of the cover is the same, which is also very cool.
Below the router is the instructions and accessories, take out everyone to look at it, the shape of the square pillars reminds people of the Rubik's Cube, very attractive eye, placed more space-saving.
The main feature of this router is the cool graphics on the top. After all, the appearance of the printed router is rare.
The only physical button on the front of the camera body is the HI button. It supports the Huawei HiLink smart home protocol, and there is an indicator light for power on.
At the bottom there is a login address, password, and other information to facilitate users to get started.
The totem at the top of the router is very conspicuous and has a strong sense of mystery. The LOGO of glory is located in the middle of the totem. The game has a strong sense of substitution.
The router's workmanship is very good, and the corners are also very sleek, but there are gaps, it is estimated that it is for heat considerations, but it will not eat gray.
The router is not completely pure black, there are gold dots in the black, it is shining. Slightly matte texture.
The silver edge HI key feels a little harder, and can intuitively see the current network conditions. When the power is not connected, the orange light will be displayed. When connected to the network, it will be displayed in white.
Although the matte texture is not easily contaminated with fingerprints, my greasy hands, playing back and forth these past few days, are also contaminated with a lot of fingerprints, and are very poorly cleaned.
There are non-slip silicone pads on both sides of the bottom of the router, which will not move easily. The gap on the edge is a cooling hole to facilitate the timely removal of heat.
The interface is also very rich, a Gigabit WAN port, four Gigabit LAN ports, a USB2.0 interface, a power interface, the LAN port is Game out of this router is a unique game interface, plug in automatically Recognize the game data and ensure priority transmission. The only regret is the USB2.0 interface. If it is 3.0, the distance of the socket is also very reasonable. The four sockets are upside down and will not interfere with each other.
Randomly equipped with a super five flat cable.

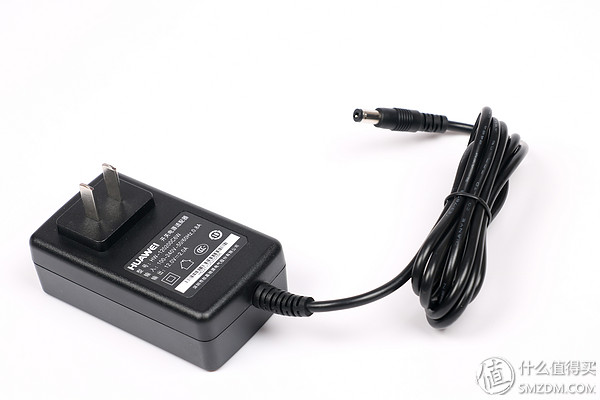

There is also a power adapter, and it's too much for people to spit, taking up the position of my two holes.
Second, daily performance
1, Wifi signal
Let's take a look at the signal strength. I set a point for each room in the house. The router is at point E. The figure below is a plan view.
Nothing can be seen from the floor plan. Then make it three-dimensional. Let's take a look. The wall structure is quite complicated.
The test software used is WirelessMon Professional, and the accuracy is quite reliable.
The measured results are as follows. The glory router is stronger than the one that I have been using. The most satisfying point is that C is a lot faster than before, and it is very happy.
2, USB port read write speed
We just finished testing the WIFI signal, then the next USB port transfer speed to test it, but unfortunately, this interface is 2.0, it is estimated that will affect the speed of mobile hard disk.
Insert a 1TB mobile hard disk, the interface is 3.0, the speed of copying to the computer is about 20M, it seems that USB2.0 has too great influence on the speed.
The speed of writing to the mobile hard disk is not ideal, only about 12M, this hard drive if you plug into the computer, you can achieve 30M speed.
3, LAN transmission speed
Two computers were used to connect routers, and files were transferred to each other, from desktop to notebook, at about 122MB.
Notebook to desktop, but also stable in the 120MB or so, it seems that the Gigabit port transmission speed is still possible, very good.
However, a problem was found in the process of use. When transferring files, the more items there are, the slower the transmission speed will be. For example, I have copied 449 items, 102GB, and the transmission speed is only about 60MB.
Pass some more documents, about 20,000, 112GB, speed is only 25.8MB per second.
Third, the game test
1, speed test
First test the speed of this router, we look at the results
A brand router: Ping value 12ms.
Glory game version of the router: Ping value of 1ms, true fake, down and up without a certain brand of router high game is not reserved for the speed?
2, game testing
League of legends
I usually play LOL this state, the ping value has remained stable at around 60.
When the hero exchanges fire, it will rise to 80ms, and the operation is not very smooth.
Open the Thunder download and try the change of the Ping value again.
Immediately rose to 164ms, can not tolerate ah, running can not run away.
In exchange for our protagonist, glory PRO game version router, Ping value is stable below 20ms.
Even when it was crossfire, it was very stable and the operation was very smooth.
Let's start Thunder again.
It can be said that there is no effect at all, just 23ms, too strong.
Counter-war:
This router's blessing to the League of Legends is too strong. How about the effects of other games? Look at the anti-war game. Using a router of my original brand, the ping value is around 95.
When it was fighting, it rose to about 135ms.
Put on the glory PRO router game version, Ping value dropped to 11ms, it can be said to have dropped 8,9 times
Even if it is not more than 20ms in the battle, it is very good and very satisfactory.
And this router is not only able to improve the speed of the game. All Tencent games can enjoy a 10% bonus. Although it is a mosquito, it is also better than nothing. With the installation of a game manager, you can enjoy 20% of the game. Plus, it's 1/5 more than anyone else! ~
Fourth, firmware settings
1, the computer side
I believe we all understand the basic settings of the router, not repeat them here, mainly talk about this router has any fun features, its management interface is very refreshing, the graphical settings so that even if you do not understand the configuration of the router users can also see understand.
The fourth item in the navigation bar of the router is the unique setting of this game route. The router will automatically test the speed and display it here. Below is the function of starting the game acceleration and pre-downloading the game update package. As long as the game acceleration is enabled, all The game data is the first to forward, so as to guarantee the speed of the game; pre-download function must be inserted into the mobile hard drive, as long as the game is updated, in the case of a network will be automatically downloaded to the mobile hard disk, greatly saving the players in the The time before the computer waits for an update.
The fifth item in the navigation bar is the terminal management page. It shows all the devices currently connected to the route and how much bandwidth is occupied. You can manually limit the speed or disable the connection.
The sixth item in the navigation bar contains some uncommon but useful features.
Insert the U disk, open the file share, use the ES to browse files and watch movies on the phone, very convenient, you can also add a password.
Page description can be used to access the mobile hard disk by computer routing hard disk assistant, but after I downloaded it showed no detected hard disk, do not know what the reason is, if you want a simple visit, map it directly on the interface of the mobile hard disk.
Parental Control This function can be used to set the access time of the device and the visited website. After the URL filtering is set to be worth buying, even the APP will not open. It is very easy to use.
Thunder remote download this feature is also very good, in the case of mobile hard disk inserted, you can download the movie outside, home can be read directly, reasonable use of limited bandwidth, can be considered a small NAS.
Although it can be downloaded remotely, the speed is not flattering, it is very fast.
2, mobile phone side
The process of setting APP over WEB is relatively simple and more intuitive. The main interface has 8 functions.
User management can see the currently connected devices and can perform rate-limiting, scheduled access, URL filtering, and other operations.
WiFi mode this choice is a bit tasteless, sleep mode signal is certainly not as good as wearing the wall, but who will soon go to sleep on the APP to adjust this, it is better and the same time off WIFI, allowing users to set some time automatically switch mode.
Acceleration function is only enabled if the game user is enabled, because only after opening the game will have effect; if it is not the game user, just chat online to watch movies, then close it on the line, as an ordinary route.
Only insert the mobile hard disk, the game will be automatically downloaded updates, usually can also be bound Thunder, download some movies and the like, as a light NAS to use.
Zhilian function is a more graphical display method. After entering, it is the same as user management.
One-click optimization can scan for any errors, such as my password is too simple. . .
The HI key on the camera body can be turned off and the router is automatically turned on. Other settings do not need to be controlled. Everything is very simple.
Fifth, heat and temperature
This router has cooling holes on both the upper and lower sides. The daily Internet access, Thunder remote access, and access to the mobile hard disk drive have no heat. The temperature is maintained at about 35°.
After 3 hours of game play, the body temperature reached the maximum value of 41 degrees, about 10 minutes after closing the game, the temperature was restored to 35 degrees, it seems that the glory routing game version of its own temperature adjustment is very good.
Sixth, summary suggestions
Through the use of this time, I feel that this router's game effect is really great, and the previous router of a certain brand is really a world apart, for game players, the practicality of this router is very large; if not Play games, it's wireless signal is also very strong, the signal quality and transmission speed to meet the general home use, set a simple and can achieve the best results, it is recommended to buy.
advantage:
1, the game version of the appearance of cool, there is a sense of substitution.
2, strong wireless signal, Gigabit transmission speed is not bad.
3, the game acceleration effect is great, effectively reducing the PING value.
4, update package can be downloaded in advance to the mobile hard disk, reducing waiting time.
5, mobile phone can remotely control home routing and Thunder download, software interface is simple and friendly.
insufficient:
1, fragmented file copy speed is not.
2, remove Thunder and TGp pre-download, and no other plug-ins, DIY function needs to be improved.
3, USB is the interface of 2.0.
4, computer hard disk management software can not be used.
5, WIFI mode can not be regularly controlled.
Suggest:
1, I hope you can customize the color of the HI key, the white light is too bright at night, or you can set the timer to turn on and off.
2, the development of the next plug-in, increase the playability, such as XX video plug-in, XX agent plug-in, XX network disk plug-in, etc., more attractive to DIY users.
3, the power plug hopes to be smaller, too much waste socket hole.
END...
